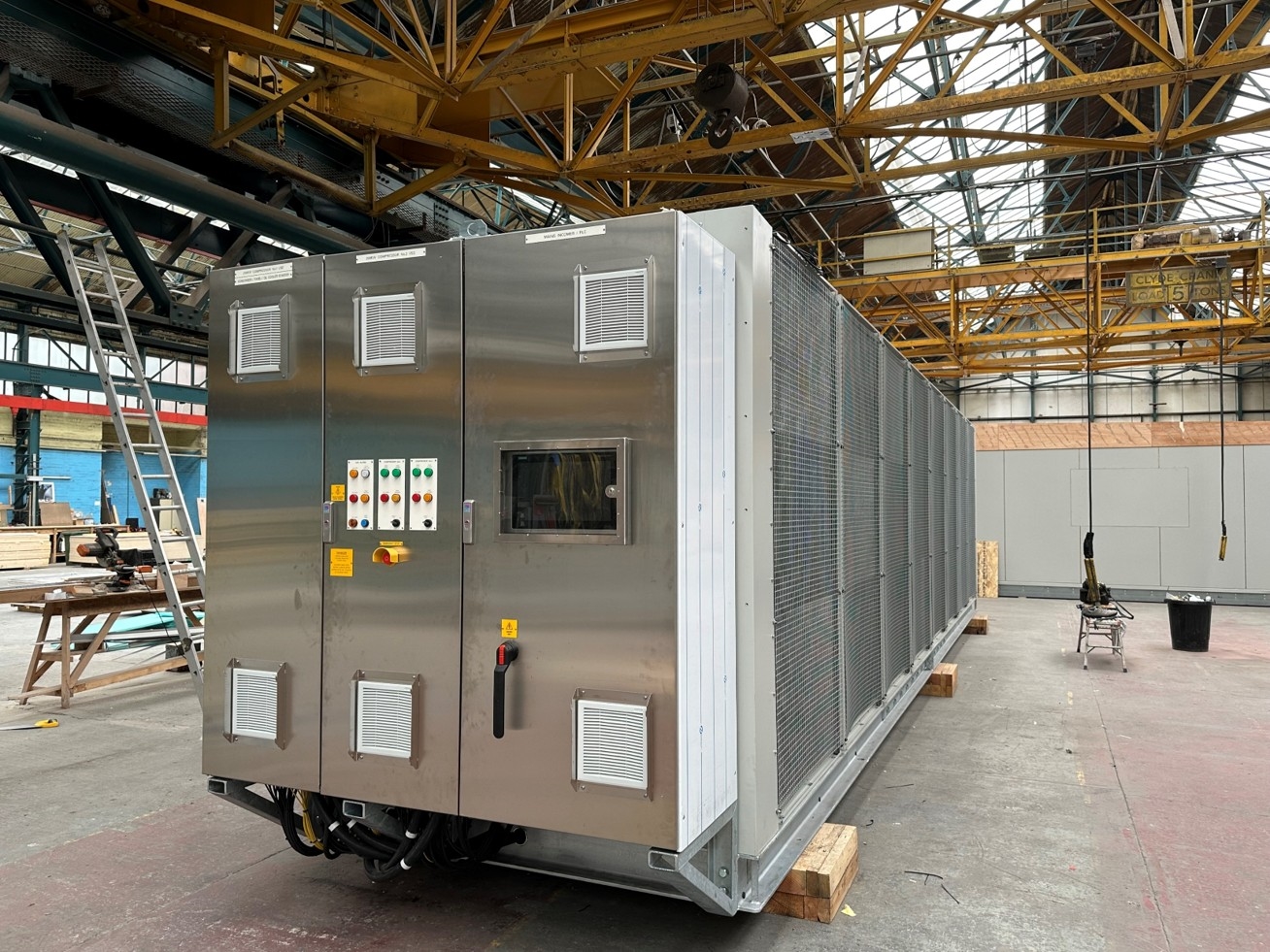

The Air-Plus is an air-cooled package chiller that utilizes ammonia as the refrigerant.
As standard the compressors are operated with variable speed drives (VSD's) to give the best possible efficiency.
The Air-Plus is suitable for both industrial process and HVAC applications.
Standard Features
- Evaporator Outlet Temperature Range: +18°C to -40°C
- Chilling Power: From 100kW to 1000 kW
- Low refrigerant charge
- Easy and simple transport and installation
- EC Fans on the air-cooled condenser to provide efficient and accurate condenser control
- Plate evaporator with low charge separator technology
- Robust control system
- Designed and Built in accordance with Directive 2014/68/EU (PED)
- UKCA or CE Marked
Available Options
- Motors with IE5 efficiency (PM or Syn-RM)
- Integrated Heat recovery
- Adiabatic condensation variant for high outdoor temperatures
- Condenser Coil with Various Anti Corrosion Coatings
- Low Noise Versions
